If your contractor keeps bringing up a topo survey, there’s a real reason behind it. Contractors work with drawings every day, but drawings only show what someone planned. They don’t show what’s on the ground right now. A topo survey fills that gap, giving your contractor real measurements instead of guesses.
Why Contractors Want Survey Data Before They Trust the Drawings
Design drawings start as an idea. An architect or engineer draws a building, a driveway, or a drainage plan based on the best information they have at the time. Sometimes that information is old, or based on a rough site visit rather than a measured survey. A contractor who commits crews and equipment needs something firmer than an idea.

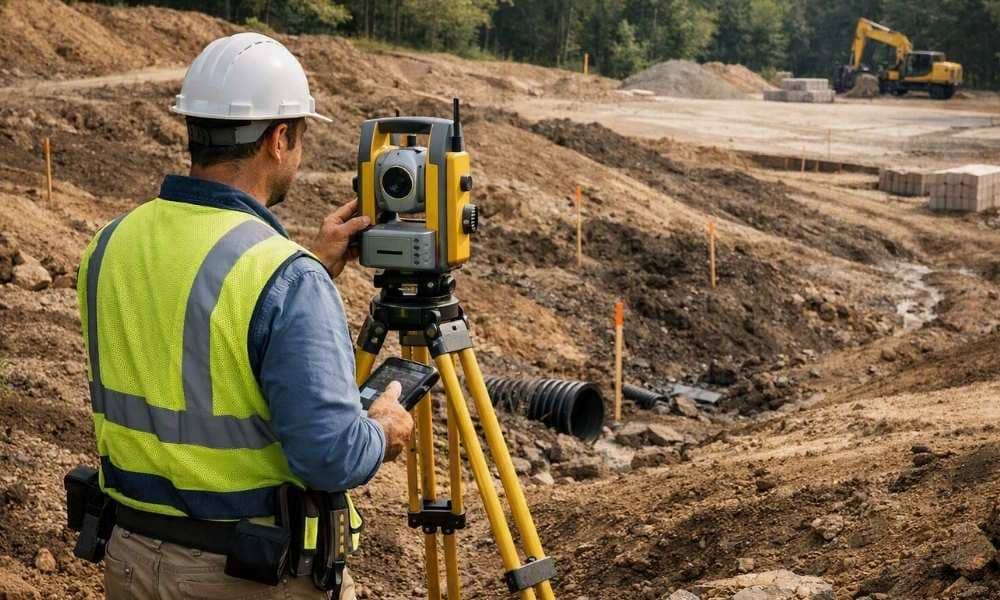

A topo survey shows the current shape of the land. It shows slopes, high points, low points, trees, structures, and other features that exist right now. When a contractor has this data, they can check the design against real conditions before work starts, which lowers the chance of a bad surprise once excavation begins. In Connecticut, where terrain can shift quickly across a single lot, this check matters even more.
Contractors also use topo data to plan how crews and equipment will move across a site. Steep grades, wet areas, or tight setbacks change how a job gets built. A set of drawings without survey backing leaves too much to guesswork, while a topo survey gives the contractor a plan built on real ground.
The Missing Measurements That Can Turn a Contractor’s Quote Into an Allowance
When a contractor lacks full site information, they can’t price every part of the job with confidence. Grading, drainage, and utility work all depend on how the land sits. Without measured elevations, a contractor has two choices. Guess how to cover the risk, or list that part as an allowance, meaning the real cost gets settled once the job is underway.
Neither option works well for a property owner. Guessing high means paying more than needed if the work turns out simple. An allowance leaves the final number open while the job is happening, which makes budgeting harder. A topo survey gives the estimator real elevations and dimensions to work from, so they can price grading, cut and fill, and drainage work based on what the land actually looks like. This is separate from the general cost of a survey itself, it’s about how missing site data affects your project budget.
Why Your Contractor May Ask for the Survey in CAD Instead of Just a PDF
A printed topo survey works fine for a quick look at a property. But architects, civil engineers, and contractors often need data they can drop straight into their own drawings, not just a picture on paper. A survey in CAD format gives them that. Points, lines, and elevations can be pulled into design software and used right away, instead of being redrawn by hand from a PDF.
Redrawing survey information by hand takes time and adds room for mistakes. A small error copied from a PDF can carry through an entire design. A CAD file skips that step, so the design team works from the same points the surveyor collected in the field.
Not every project needs a CAD deliverable. A homeowner planning a small addition may only need a PDF. But if your project involves an architect, civil engineer, and contractor working together, ask your surveyor about file format before the work starts, so a second phone call isn’t needed later.
One Topo Survey Can Keep Different Project Teams Working From the Same Existing Conditions
On a typical project, several people rely on site information at different times. The architect uses it to design the building. The civil engineer uses it to plan grading and drainage. The estimator prices the job, and the contractor plans the build. If each of these people works from a different set of measurements, small conflicts start to show up.
One team might think a slope is two feet lower than it really is. Another might place a tree in the wrong spot on their drawing. These small gaps cause real problems once everyone tries to build from their own version of the site. A single topo survey, shared with every team member, removes this problem, since everyone works from the same set of measured points, not from construction staking or permit drawings, but from one shared starting picture of the land.
Why “We Need a Topo” Is Not Specific Enough for the Surveyor
Not every topo survey covers the same ground, literally or otherwise. A request for “a topo” can mean different things depending on the project, and the surveyor needs specifics. How far past the building footprint should the survey extend? Does the contractor need spot elevations every ten feet, or a tighter grid? Should the survey pick up fences, utility poles, or drainage structures on neighboring land that ties into the site?
The team should also decide on digital deliverables before the surveyor goes out. Asking for CAD files after the fieldwork is done can mean a second visit or extra processing time. Setting these details early, with input from the architect, engineer, and contractor, means the survey that comes back has what the project needs the first time.
Frequently Asked Questions
Why does my contractor need a topo survey if the architect already visited the property?
A site visit and a survey serve different purposes. During a site visit, the architect looks at the property and forms an opinion about what’s there. A topo survey provides measured positions and elevations that can be placed directly into project drawings. One is an observation, the other is data the team can build from.
Can my contractor request the topo survey directly from the surveyor?
Project teams often coordinate survey requests directly with each other. Even so, the property owner or the party paying for the work should understand what scope and deliverables were requested before the surveyor is authorized to start. This avoids confusion later about what the survey does and doesn’t include.
Does the topo survey need to cover my entire property?
This depends on the project. A small addition may only need survey coverage near the building, while a larger development might need the whole lot measured. There’s no single rule that fits every property, so the design and construction team should agree on the limits based on what the project actually requires.
Should I ask for the topo survey in CAD format?
Ask your architect, engineer, or contractor what format they can use before the survey happens. Some firms work directly with CAD files, while others only need a PDF. Deliverables vary by firm, so confirm this early rather than after the fieldwork is done.
Why is my contractor asking me to confirm the topo survey scope before work starts?
“Topo survey” can describe different amounts of field work and different deliverables. Some projects need a tight grid of elevations, while others only need the major features marked. Confirming scope early helps the team avoid finding out later that more survey information is needed.
