Most homeowners picture their addition before they picture their yard. They sketch out a new kitchen or a second-story bedroom, then hand the drawing to a contractor and expect ground to break soon after. What they don’t picture is the slope behind the garage, or the low spot near the fence line that floods every spring. Those details don’t show up on a floor plan. They show up during excavation, or worse, after the addition is built and water starts pooling against the new wall. A topographic survey is how you catch these problems while they’re still cheap to fix.
How a Topo Survey Keeps Your Addition From Creating a Drainage Problem
Water always finds the lowest point. Right now, your yard has a natural path for rain to follow, toward the street, a drain, or a low corner of the property. Add a new structure, and you change that path. A wall that wasn’t there before can block runoff and send it somewhere it’s never gone: your foundation, your neighbor’s yard, or a spot that never drained well to begin with.

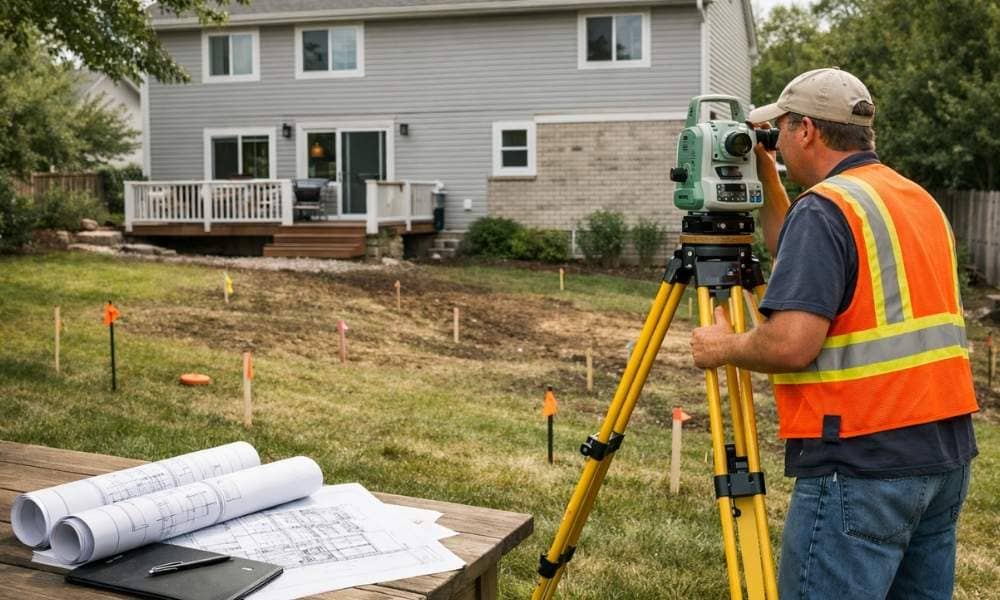

A topographic survey maps the existing slope of your land before anyone touches a shovel. It shows exactly how water moves across your property today. Your architect or engineer uses that map to plan grading around the new addition, so water keeps flowing away from the house instead of pooling against it. Skipping this step is one of the most common reasons additions end up with a wet basement or a soggy backyard within the first year.
Why Your Addition’s Foundation Height Depends on Existing Grade
An addition needs to line up with the home it’s attached to. That sounds obvious, but the ground under your yard isn’t perfectly flat, and small elevation differences add up fast. If the new foundation sits even a few inches lower than the surrounding grade, water can collect against that wall every time it rains.
A topo survey gives your design team the actual elevations around the build site. That data sets the correct finish floor height for the addition, so it matches the existing home instead of creating an awkward step up or down between rooms. It also keeps the new structure high enough that runoff drains away from it, not toward it. This single piece of information affects your foundation plan, your door thresholds, and how the whole addition feels once you’re standing inside it.
Uncovering Septic, Well, and Underground Utility Conflicts Early
Plenty of additions get planned around what’s visible above ground and nothing else. Then a backhoe hits a leach field, or the county flags the plan because the new footprint sits too close to a well. These are expensive surprises, and they usually stop a project cold while everyone scrambles for a fix.
A topographic survey typically locates visible utility features and can be paired with utility markouts to flag septic components, wells, and underground lines before design work finalizes. Catching these conflicts on paper costs a fraction of what it costs to redesign a foundation mid-construction. It also protects you from damaging a system that’s expensive to repair or replace.
What Sloped or Tight Lots Mean for Where Your Addition Can Go
Not every lot has room to expand wherever the homeowner wants. A sloped backyard, a rock outcrop, or a narrow side yard can all limit where a safe, buildable footprint actually exists. Connecticut has plenty of lots like this, especially in older neighborhoods where homes were built before modern grading standards.
Elevation data from a topo survey shows your designer exactly how much usable flat space you have, and where the land changes too fast to build without a retaining wall. This lets your team place the addition where it will actually work, instead of drawing a plan that looks fine on paper but requires major regrading once construction starts. It’s far easier to adjust a design than to move dirt you didn’t budget for.
How Topo Data Speeds Up (or Slows Down) Your Building Permit
Local building and zoning departments don’t just review your floor plan. They also check how the addition affects drainage, grading, and setbacks on your lot. Many towns require elevation data as part of the permit package for anything beyond a minor addition.
Submitting a permit application without this information is one of the most common reasons plans get sent back for revisions. That delay can push a project back weeks. A topographic survey, done early, gives your architect the data needed to submit a complete package the first time. It’s one of the simplest ways to keep your timeline on track.
Frequently Asked Questions
Do I need a topographic survey for a small addition, like a sunroom or mudroom?
Even small additions can require a topo survey if the town’s grading or drainage rules apply, or if the addition changes how water flows across your lot. Size alone doesn’t decide it. Ask your local building department or your surveyor before assuming a small project is exempt.
Can I use my existing boundary survey instead of getting a topo survey?
No. A boundary survey shows where your property lines sit. A topographic survey shows the elevation and slope of the land itself. Architects and engineers need both types of information to design an addition that fits the lot and drains correctly.
Will a topographic survey show where my septic tank, leach field, or well is located?
Often, yes, when these features are visible or previously mapped, an additional utility locating can confirm what’s underground. This matters directly for additional placement, since building too close to a septic system or well can violate local health codes and force a redesign.
How far in advance of construction should I schedule a topo survey?
Schedule it before your architect finalizes the design, and well before you request permits or contractor bids. Doing it early gives your design team accurate information from day one, instead of forcing revisions after the plans are already drawn.
Does a topo survey affect how much my home addition will cost to build?
It can, but usually by saving money rather than adding it. Knowing about slope, drainage, or utility conflicts before construction starts lets you plan for fill, grading, or a retaining wall in the original budget, instead of paying for an emergency fix once the project is already underway.
